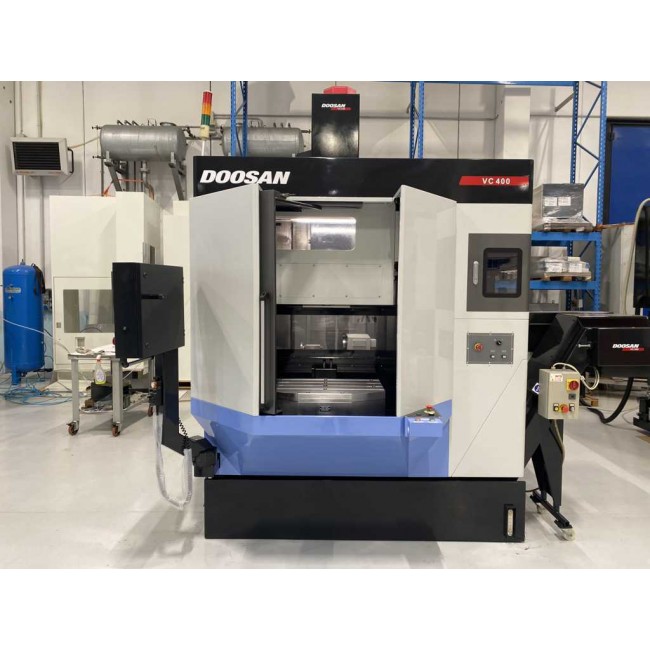

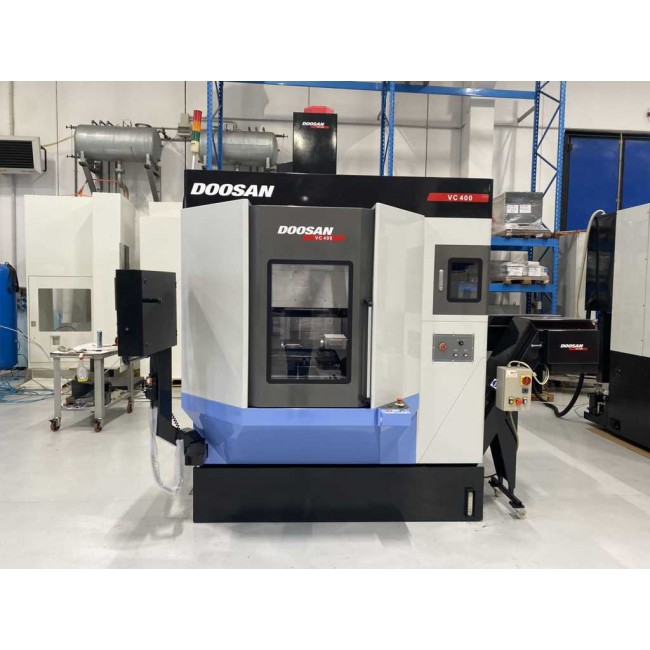

CENTRO DI LAVORO VERTICALE DOOSAN MOD. VC400
X-AXIS TRAVEL: 560 MM
Y AXIS TRAVEL: 400 MM
Z AXIS TRAVEL: 570 MM

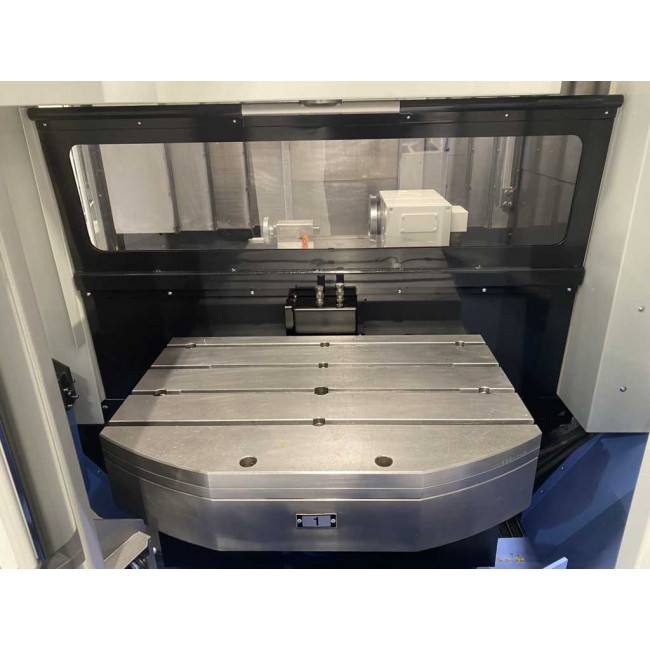

NUMBER OF TABLES: 2
TABLE DIMENSIONS: 712 X 475 MM
DISTANCE NOSE SPINDLE / TABLE: 210-780 MM
QUICK X AXIS: 40 M / MIN
RAPID Y AXIS: 40 M / MIN
QUICK Z AXIS: 32 M / MIN
SPINDLE SPEED RPM 10.000
SPINDLE ATTACHMENT BT 40
NO. TOOLS: 40

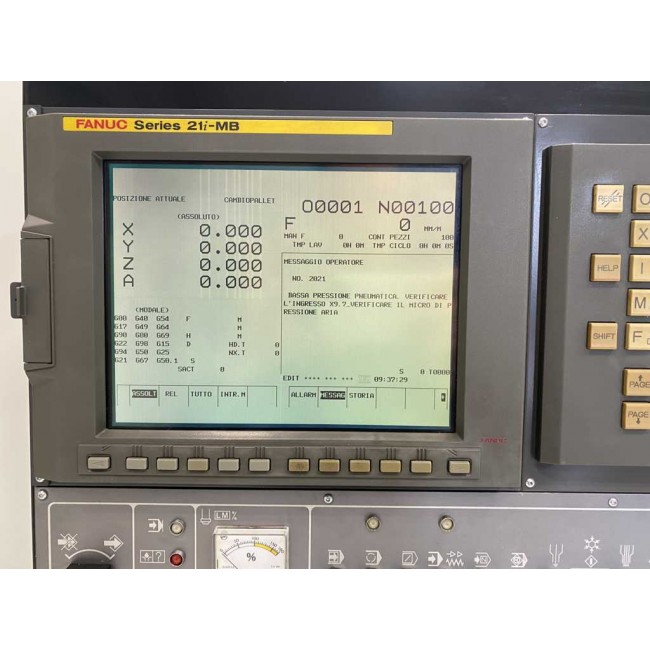

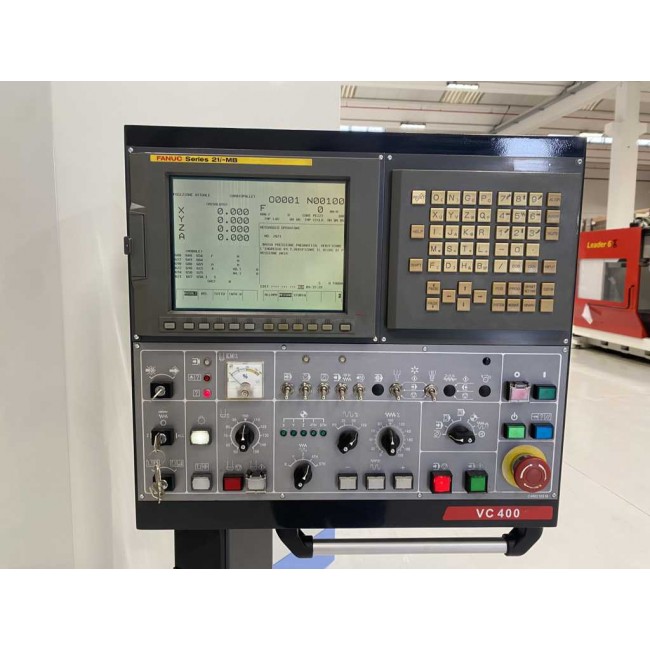

CONTROL: FANUC 21i-MB

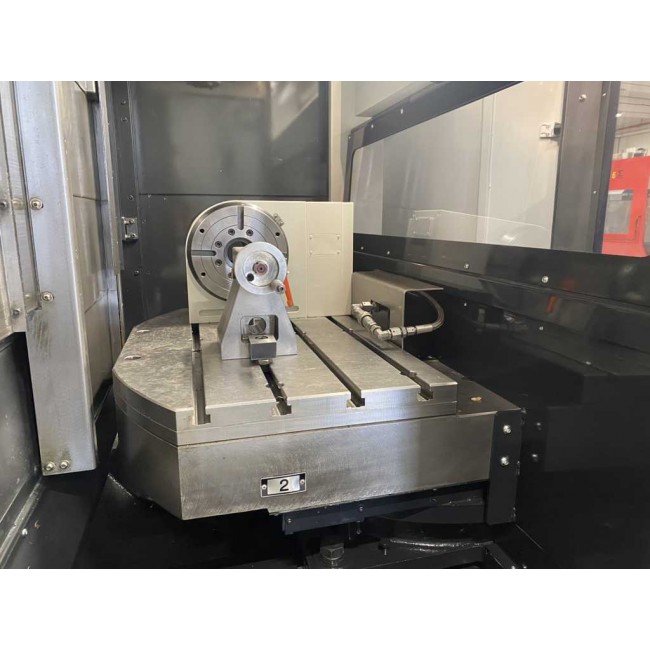

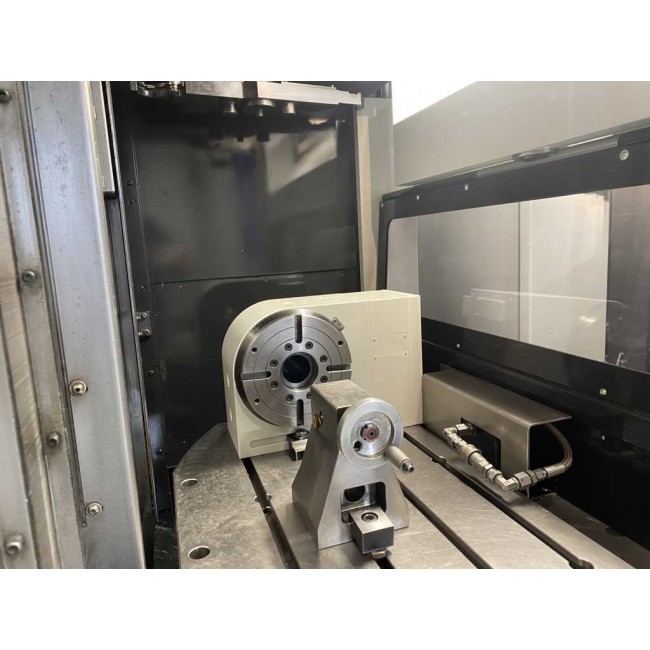

4TH AXIS TABLE
