X: 560 MM
Y: 400 MM
Z: 570 MM
NO. TABLES: NO. 02
TABLE LENGTH: 650 MM
TABLE WIDTH: 450 MM
MAXIMUM WEIGHT ON THE TABLE: 300 KG
TOOL...
Marca: KARDEX
Mod. SHUTTLE XP 500
Nr. Vassoi: 39
Portata vassoio: 500 Kg
Altezza: 8,30 m
Anno: 2004
CUTTING DIAMETER: 230 MM
TURNING LENGTH: 600 MM
TAPER OF SPINDLE: ASA 6
BAR WORKING DIAM.: 65 MM
SPEED: 5000 RPM
AXIS C: 0.001 DEGREE
TAPER OF...

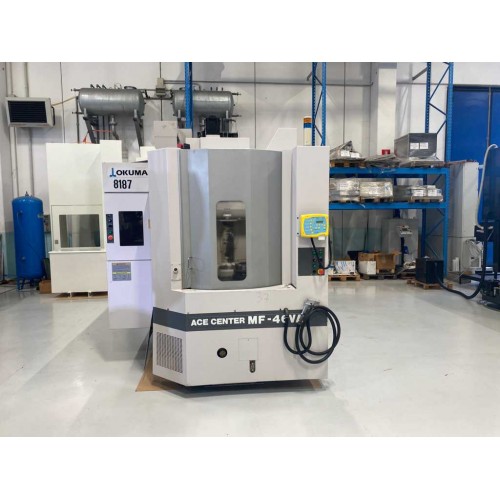

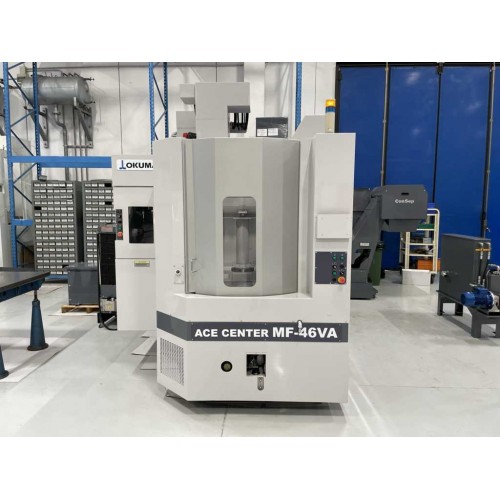

X-AXIS: 762 MM
Y-AXIS: 560 MM
Z AXIS:460 MM
SPINDLE SPEED: 15,000 RPM
SPINDLE TAPER: BT 40
TABLE DIMENSION: 460 X 760 MM
MAXIMUM LOAD: 400 KG

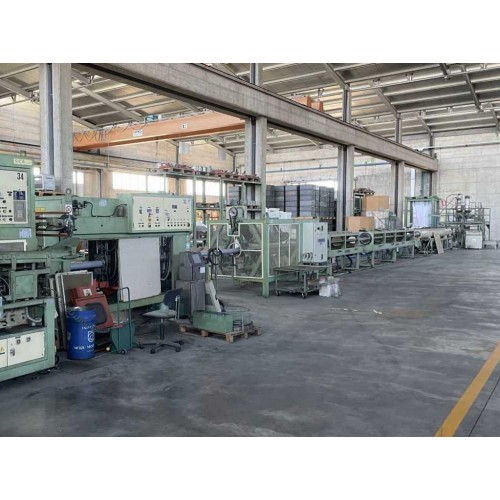

LINE COMPOSED OF:
TRANSPORT, MIXING AND DOSING SYSTEM WITH 3 COMPONENTS
SINGLE SCREW EXTRUDER TR.85.AFT Ratio 1:30
STATIC MIXER
FHT.16 PIPE HEAD COMPLETE...
Marca: KARDEX
Mod. SHUTTLE XP 500
Nr. Vassoi: 39
Portata vassoio: 500 Kg
Altezza: 8,30 m
Anno: 2004
FEATURES:
AXIS TRAVEL X: 870 MM
MOVING ALONG THE Y-AXIS: 710 MM
THE Z-AXIS TRAVEL: 660 MM
4TH AXIS (ROTARY TABLE): 0,001 - 360°
TABLE: 500 X 500...
Brand: KARDEX
Mod. SHUTTLE XP 500
Nr. Trays: 39
Tray capacity: 450 Kg
Height: 5,60 m
Year: 2003

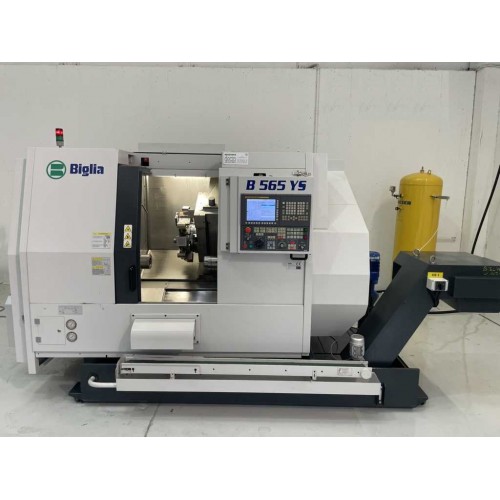

MAX TURNING LENGTH: 1.520 MM
MAX TURNING DIAMETER: 540 MM
BAR WORKING DIAMETER: 76 MM
LEFT SPINDLE SPEED: 3,500 RPM
RIGHT SPINDLE SPEED: 3,500 RPM
AXIS X: 840 MM
AXIS Y: 860 MM
AXIS Z: 840 MM
TABLE SIZE: 630 X 630 MM
BOARD AMOUNT: 1200 KG
TABLE INDEX: 1°
POWER OF SPINDLE MOTOR: 30/25 KW
USED FANUC DRIVES, IN THE STATUS AS THEY ARE
NR. 03 A06B-6127-H202
NR. 04 A06B-6127-H105
NR. 07 A06B-6127-H209
NR. 03 A06B-6120-H075
NR. 05...
MOTHORIZED WITH C AXIS
AXISX: 1.375 MM
AXISZ: 900 MM
VERTICAL TRAVEL CROSS: 800 MM
TABLE DIAMETER: 1.250 MM
DIAM. MAX...
