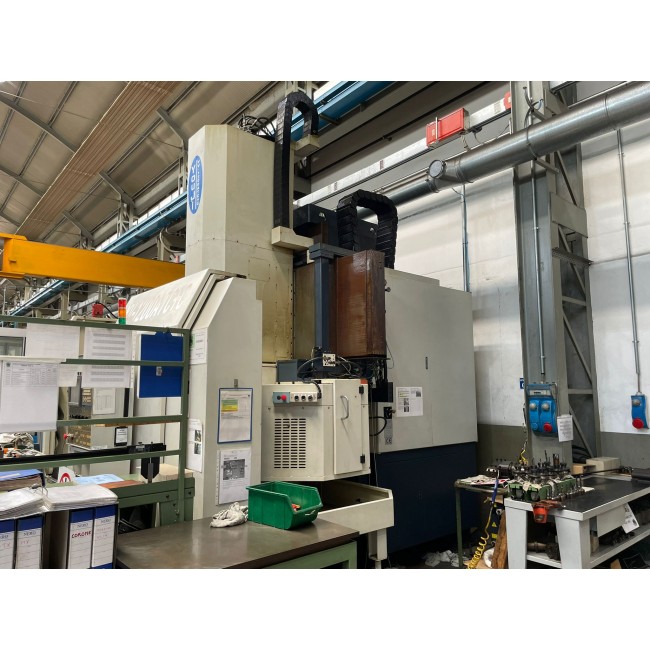

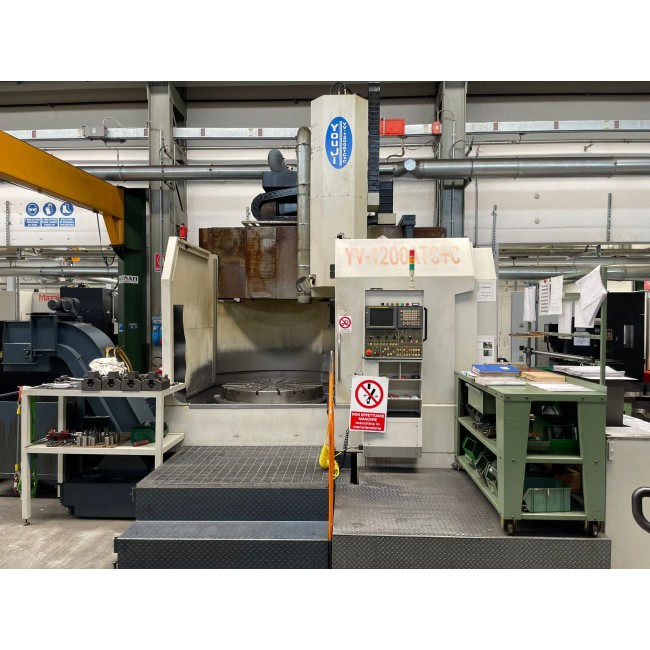

VERTICAL LATHE YOU JI MOD. YV-1200ATC+C
MOTHORIZED WITH C AXIS
AXISX: 1.375 MM
AXISZ: 900 MM
VERTICAL TRAVEL CROSS: 800 MM

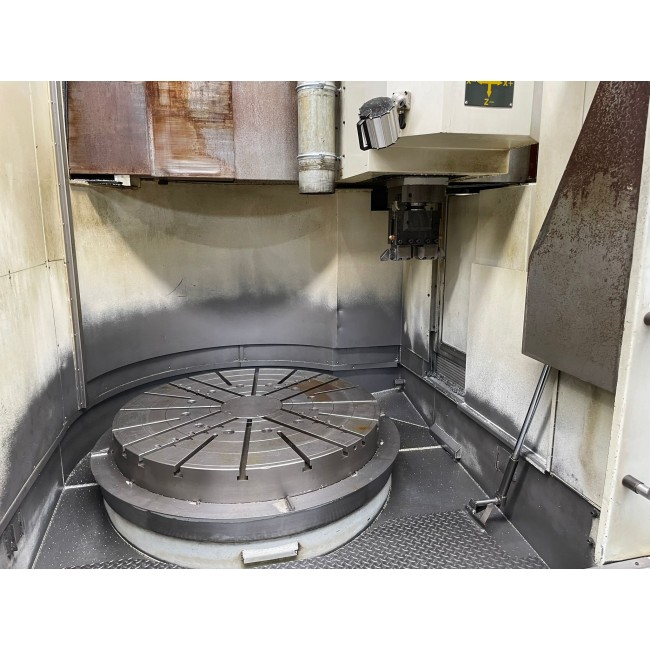

TABLE DIAMETER: 1.250 MM
DIAM. MAX CUTTING: 1.350 MM
MAXIMUM VOLTAGE: 1.600 MM
MAX TABLE CAPACITY: 5 TON

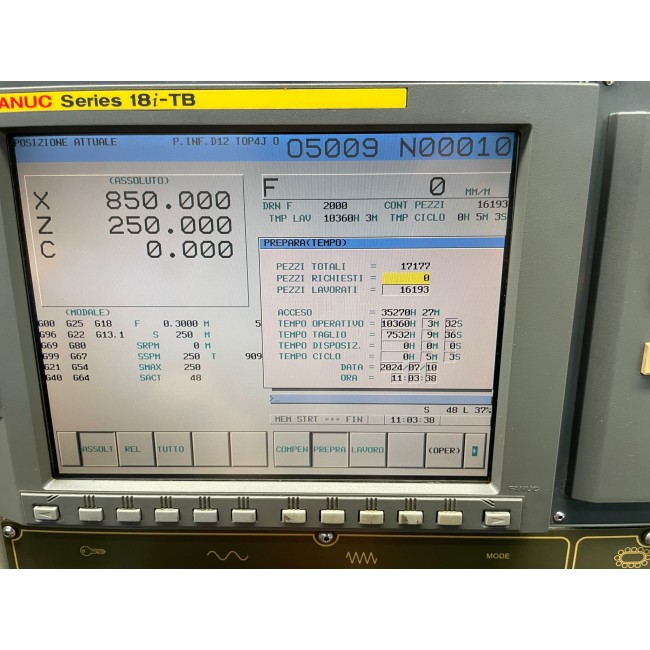

CONTROL: FANUC 18i-TB SERIES
SPINDLE SPEED: 2-350 RPM
SPEED PHASES: 2

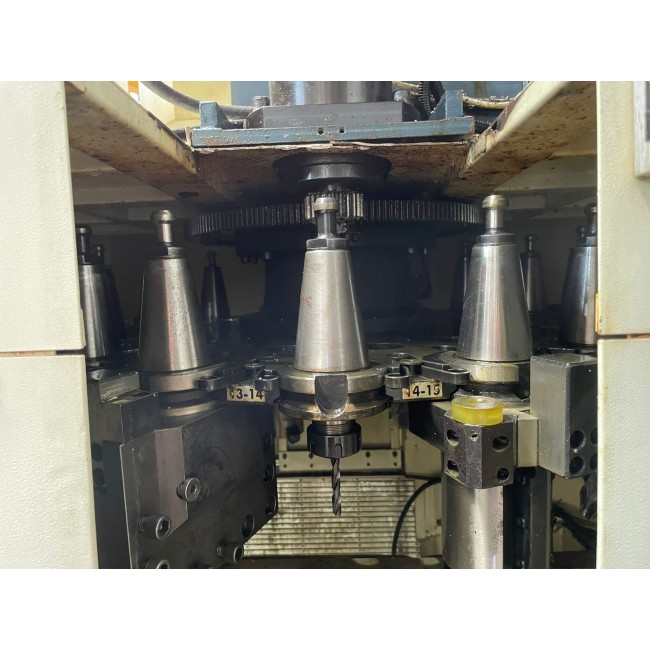

AUTOMATIC TOOL CHANGE SYSTEM
ATC TYPE: 12 TOOLS
TOOL: BT50
TOOL MEASURE MAX: 350L X 350P X 150H MM
MAX TOOL WEIGHT: 50 KG
MAX ATC LOAD: 360 KG
SPINDLE MOTOR: 30/37 KW
