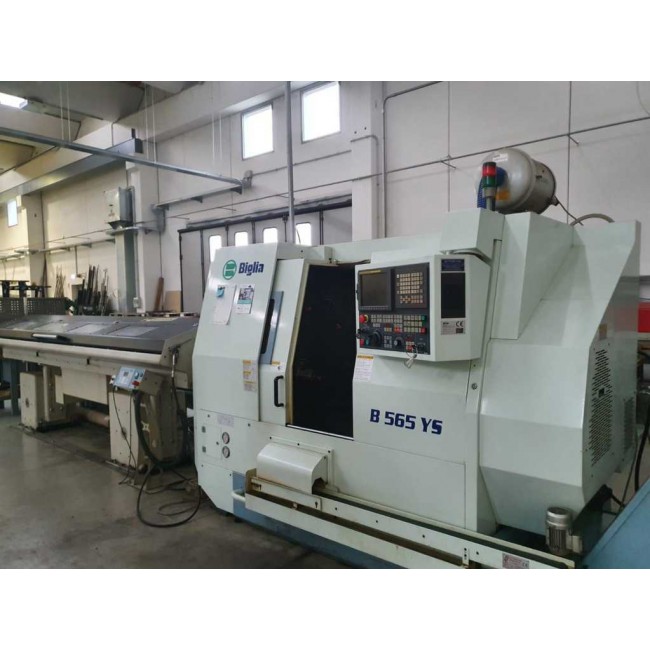

LATHE BIGLIA B565-YS
MODEL: B565 SY
MAX Ø OF MACHINED FROM BAR: 65 MM
MAX MACHINABLE LENGTH: 560 MM
MAX Ø ROTATING: 580 MM
ROTATION: 50-5000 REV/MIN
SPINDLE NOSE: ASA 6"
SPINDLE BORE: 65 MM
STROKE AXIS X,Z,Y: 170,560,+55/-50 MM
N. of POSITIONS: 12
MOTORIZED
ROTATION: 40-4000 REV/MIN
THE NOSE SUB-SPINDLE: ASA 5"
HOLE SPINDLE: 55 MM

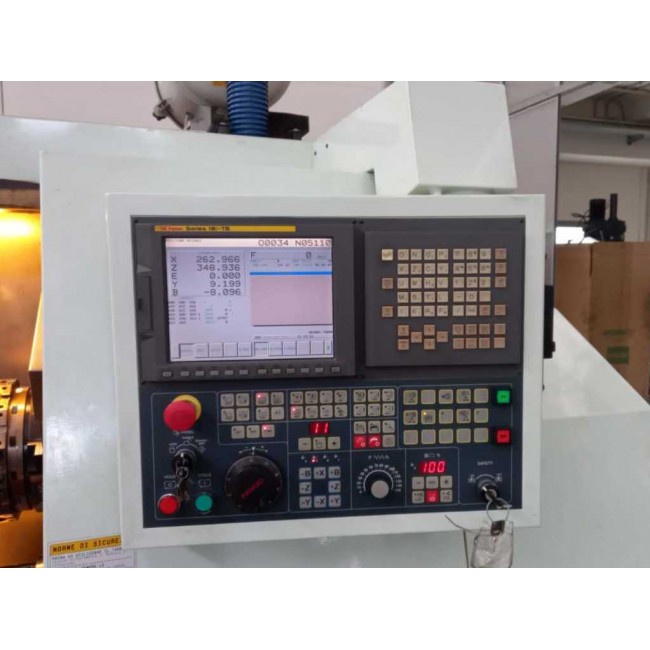

CNC: FANUC 18i-TB

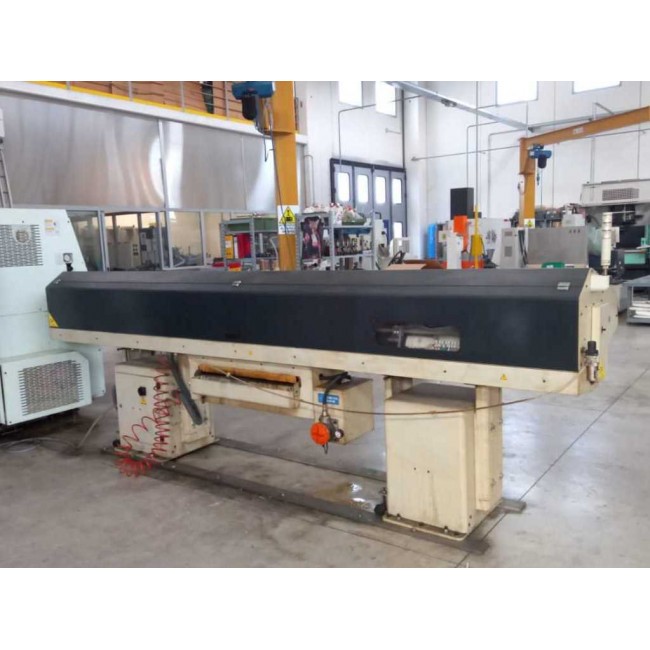

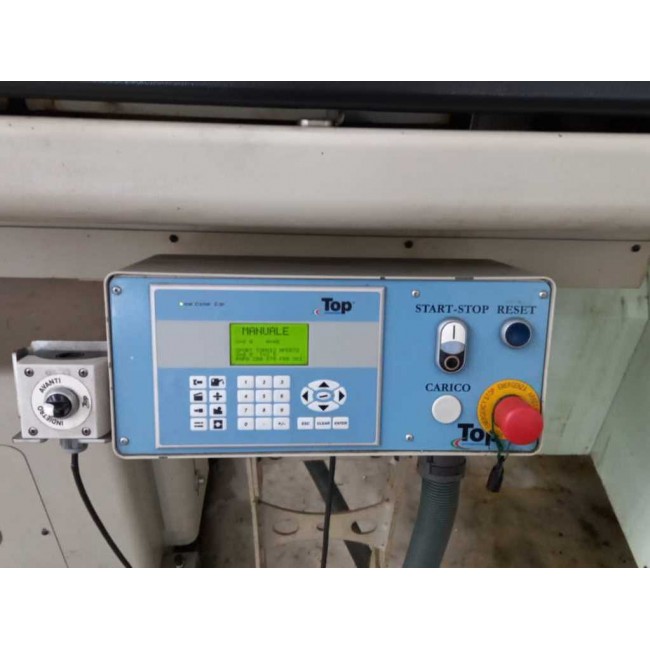

COMPLETE WITH CHARGER "TOP"
