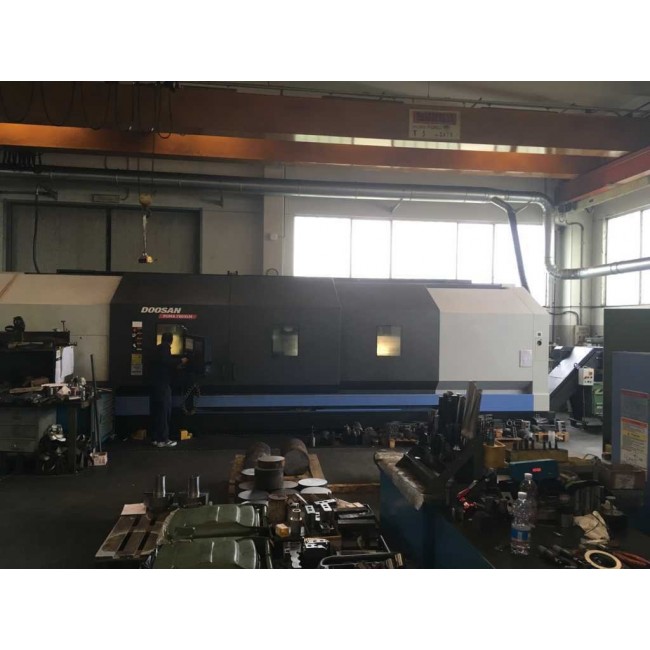

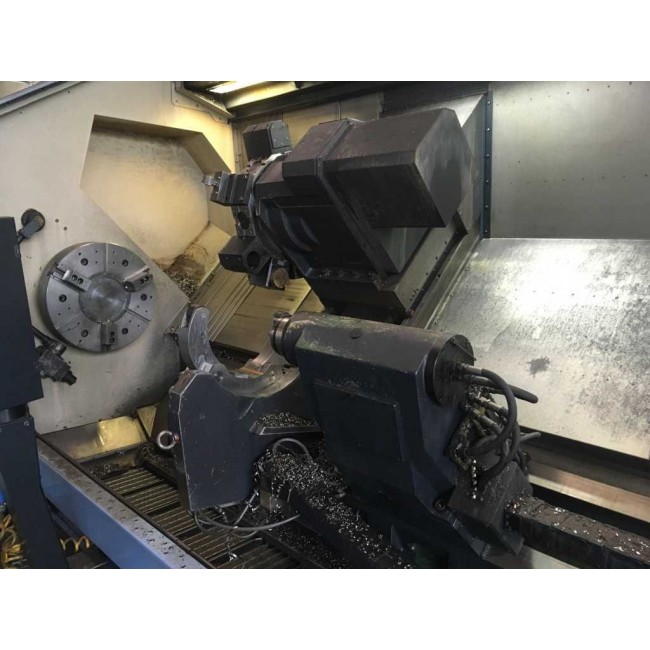

LATHE DOOSAN PUMA 700 XLM

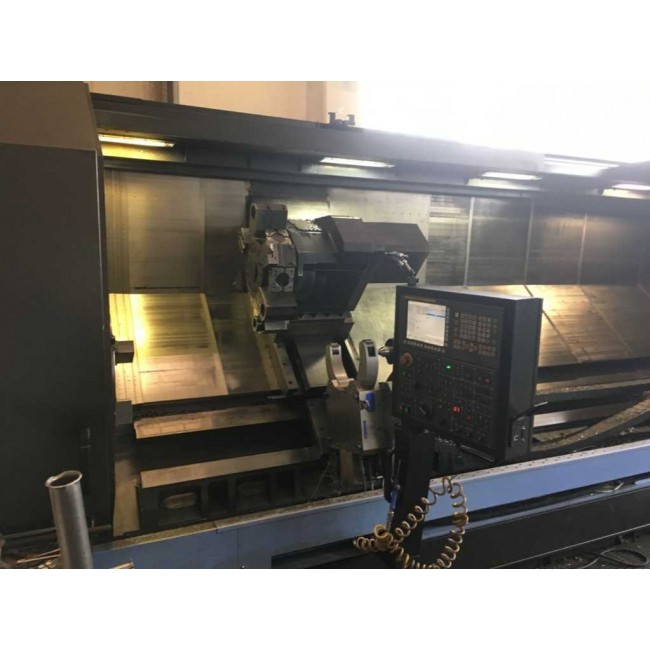

FANUC SERIES 32I MODEL A
D. MAX ROTATING ON the BENCH MM 1.140
D. MAX ROTATING ON the BANDWAGON 1.000 MM
D. MAX TURNING MM 900
D. MAX TURNING BAR MM 164

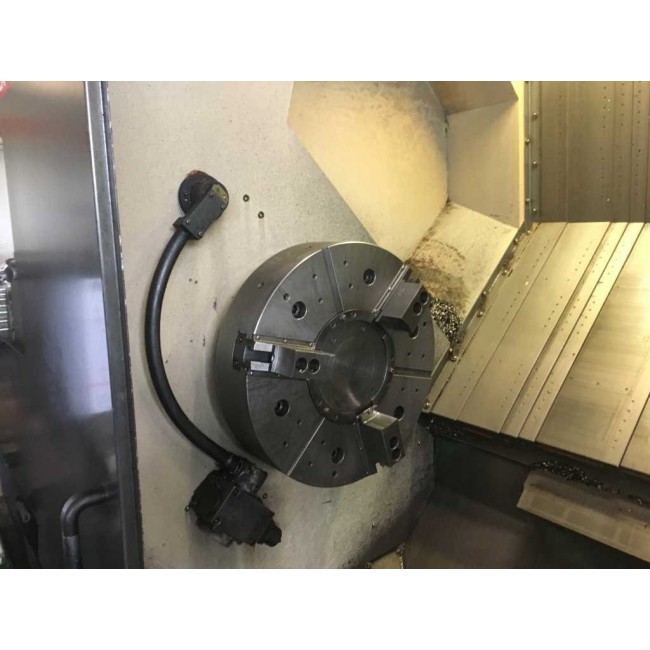

SPINDLE NOSE ASA A1-15
VEL. MAX: RPM 3.500
D. SPINDLE BORE MM 181
THE C-AXIS IN CONTINUOUS 0.001°
STROKE AXIS X,Z,C: MM, 470, 5.100, +-360°

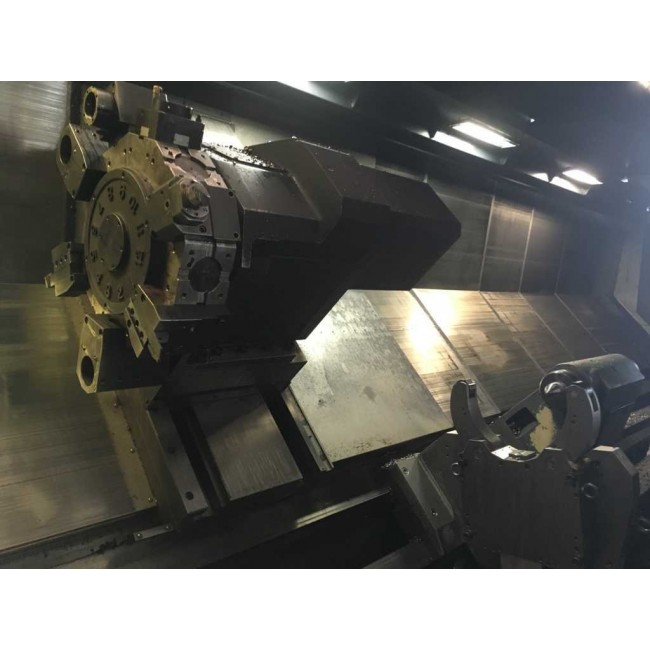

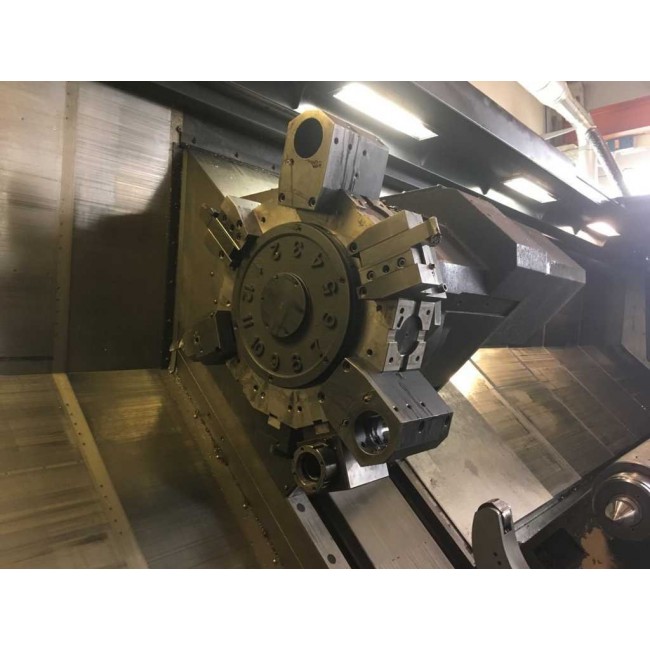

TURRET 12 POSITIONS, CAN BE CARRIED OUT
VEL. MAX LIVE TOOLING RPM'S 3,000
