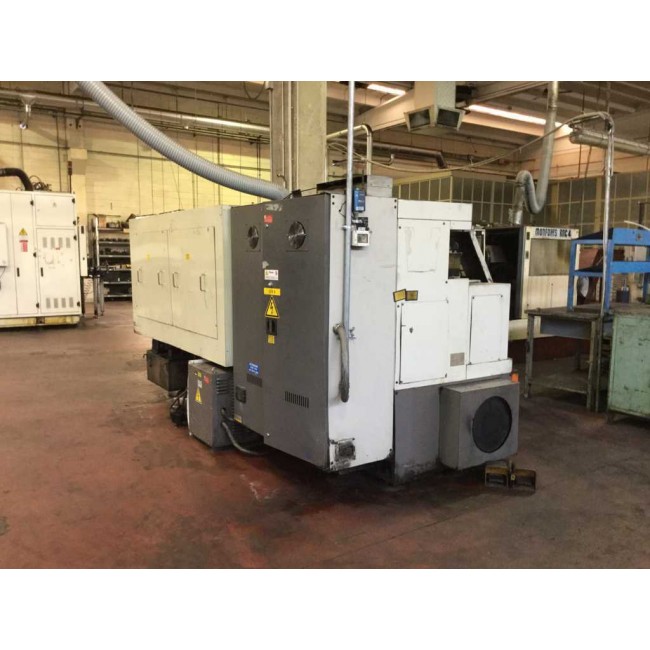

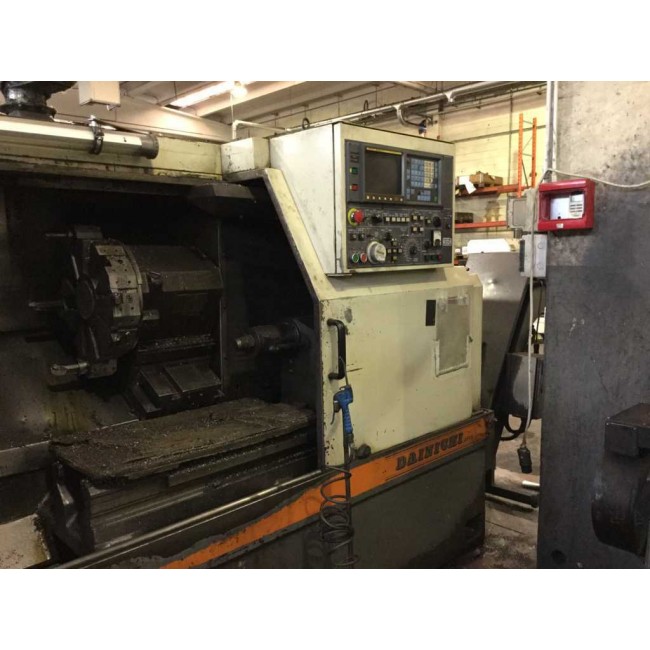

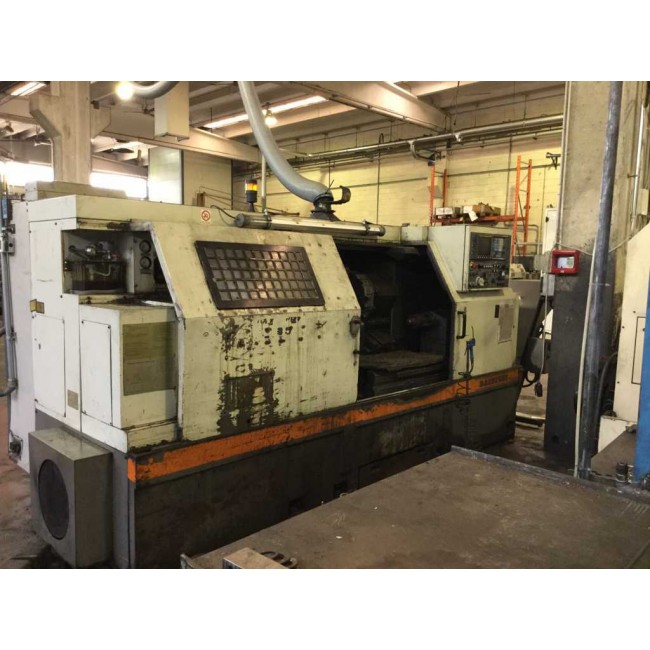

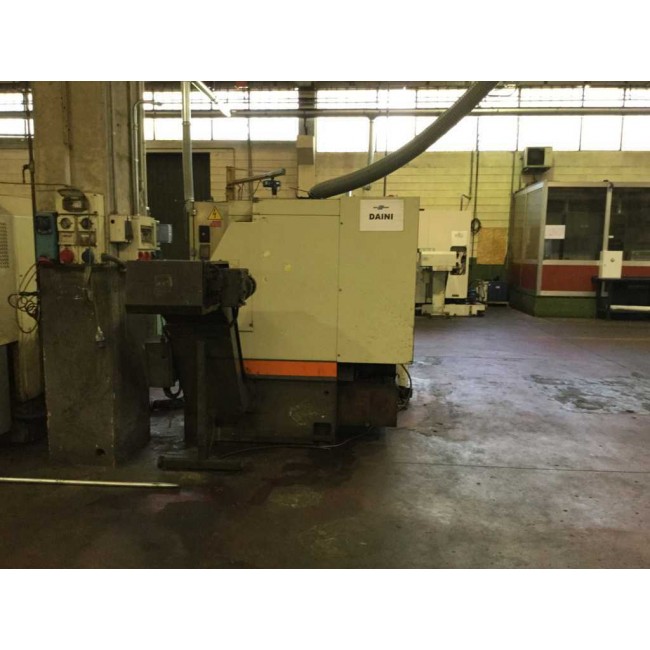

HORIZONTAL LATHE DAINICHI F35
MAXIMUM DIAMETER ROTATING ON BENCH: MM. 550
SWING OVER CROSS SLIDE: MM 400
DIAMETER: MM 350
DISTANCE BETWEEN CENTERS: MM 1270
MAXIMUM LENGTH TURNING: MM. 1250
AXIS X: MM. 200
AXIS Z: MM 1320
RAPID FEEDS AXIS X: MM/MIN 12000
RAPID FEEDS AXIS Z: MM/MIN 15000
TAPER SPINDLE NOSE: ASA A2-8
SPINDLE SPEED: RPM 25-2500
DIAMETER OF SPINDLE BORE: MM 105
BAR PASSAGE USEFUL: MM. 90
SPINDLE MOTOR POWER: KW 22
NUMBER OF TOOLS IN TURRET: N° 12
SECTION FOR EXTERNAL TOOLS: MM 25X25
TAPER TAILSTOCK WITH INTERNAL ROTATION: C. M. 4
STROKE QUILL: MM 120
RACE BODY TAILSTOCK: MM. 1000
FORCE: KG. 120-700
