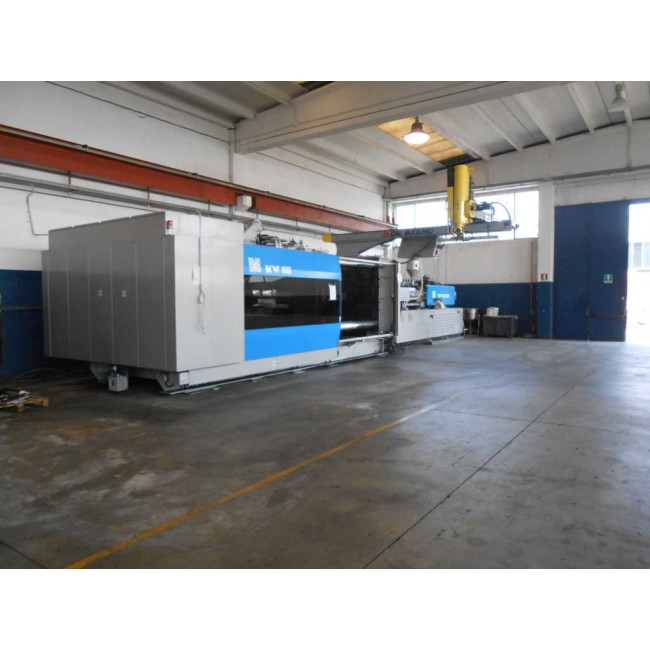

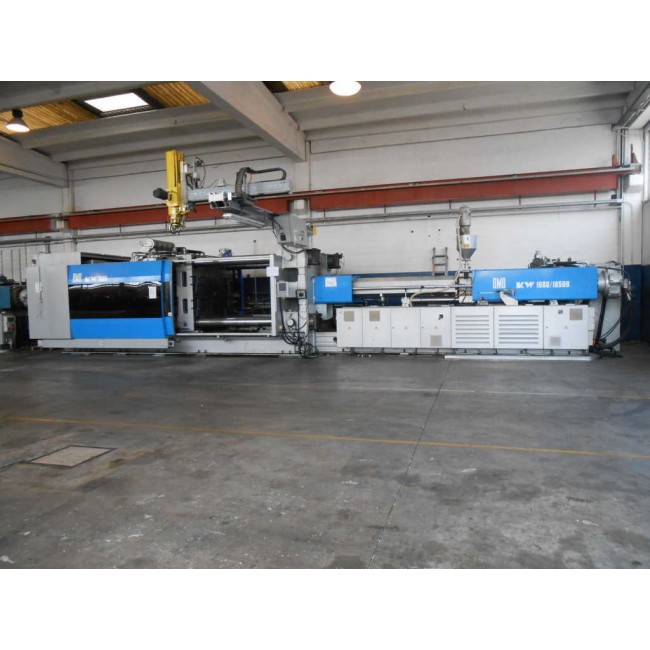

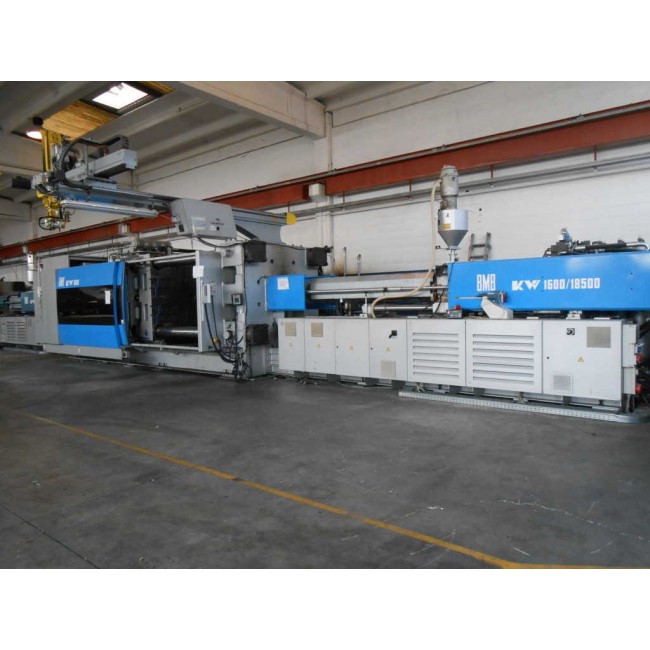

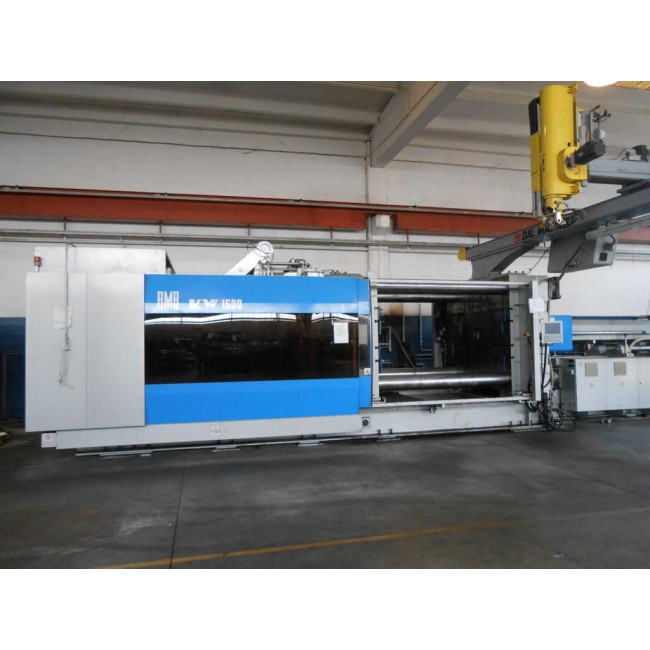

INJECTION MOULDING MACHINE BMB KW 1600/18500
- Power: 1600 ton
- Screw diameter: 140 mm
- Size plans: 2320 x2020 mm
- Dimensions between columns: 1650 x1350 mm
- Maximum light between floors: 3150 mm
- Diameter of columns: 250 mm
- The minimum thickness of mold: 500 mm
- Maximum thickness of mold: 1,350 mm
- Stroke extraction: 550 mm
- Extraction force: 200 kN
- Size : 15710 x 3920 x h 3235
- Weight: 106000 kg
- The year 2008
- Serial number: 8021352
