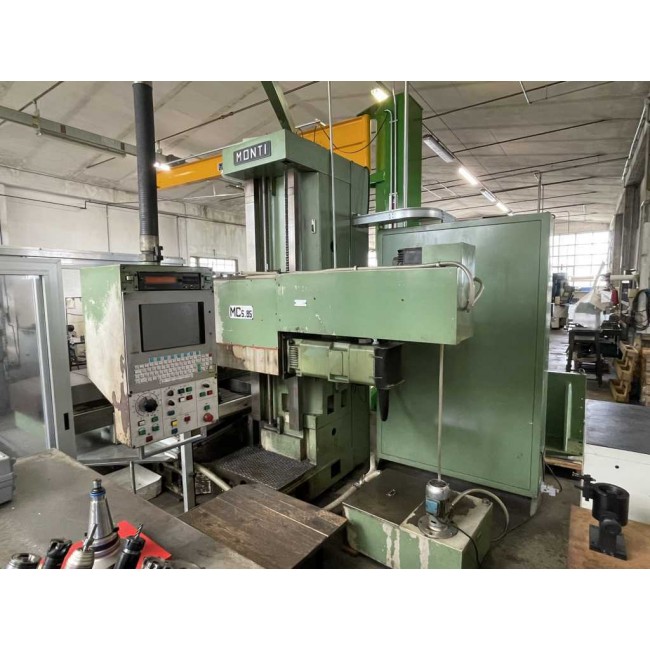

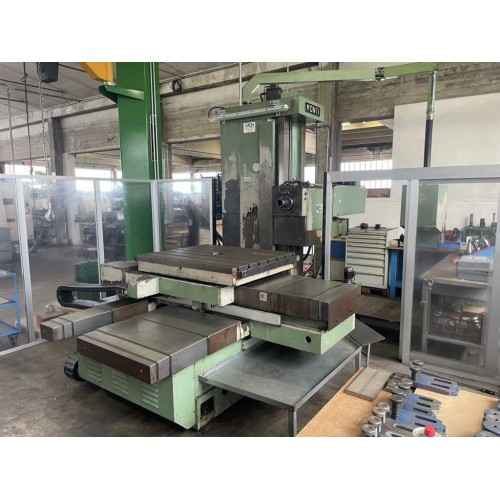

BORING MACHINE ALESAMONTI MOD. MCS85
AXIS CHARACTERISTICS
X-TRANSVERSAL AXIS: 1,500 MM
Y-VERTICAL AXIS: 1,000 MM
LONGITUDINAL AXIS L: 1,000 MM
Z-SLEEVE AXIS: 500 MM
B-TABLE AXIS: 360°
X,Y,L-AXIS SPEED: 6,000 MM/MIN
Z-AXIS SPEED: 3,500 MM/MIN

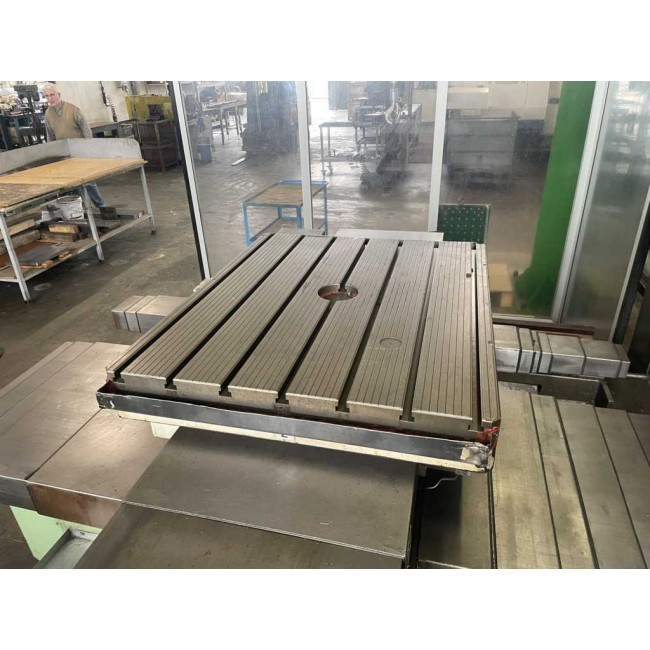

TABLE CHARACTERISTICS
TABLE DIMENSION: 900 X 1,000 MM
PERMITTED LOAD: 3,000 KG

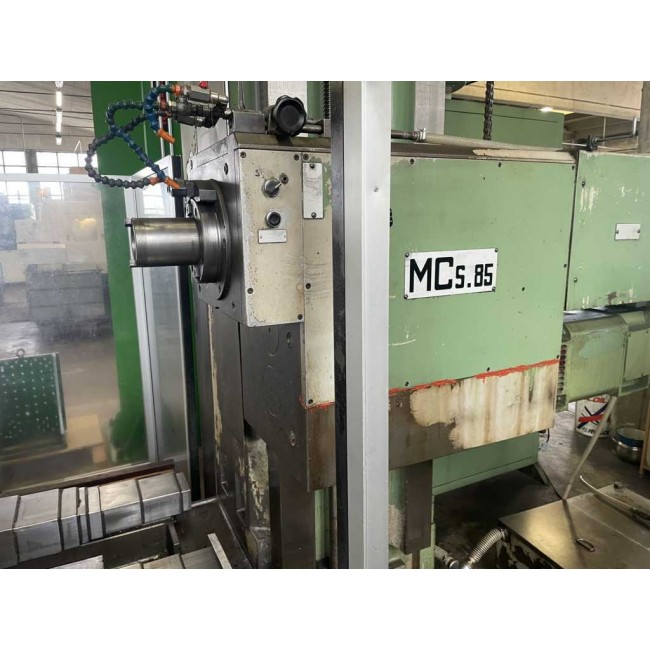

SPINDLE CHARACTERISTICS
MOTOR POWER: 11KW
MAX SPEED IN LOW RANGE: 350 RPM
MAX SPEED IN HIGH RANGE: 1,300 RPM
SPEED MAX WITH RPM MULTIPLICITY: 6,000 RPM

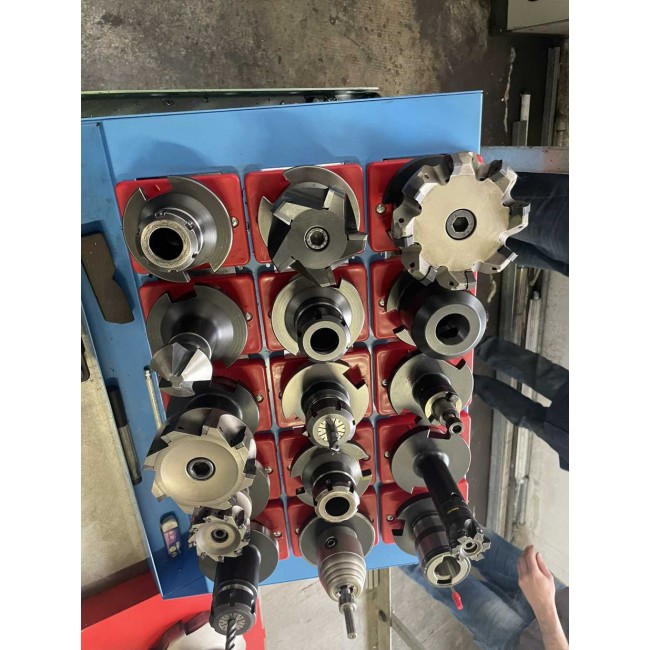

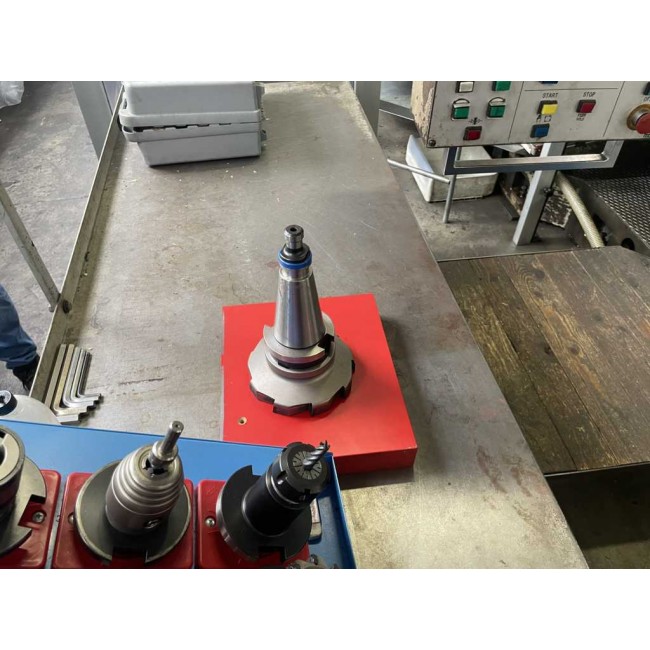

TAPER: ISO 40

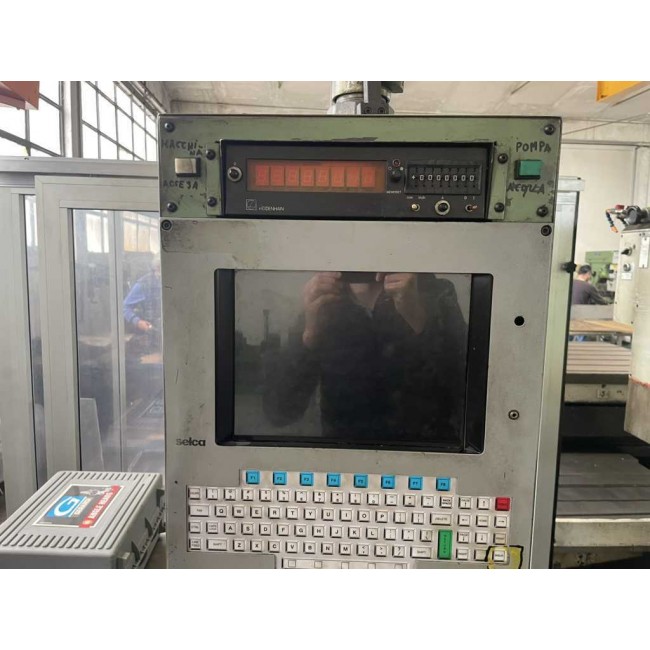

CONTROL: SELCA 1200
