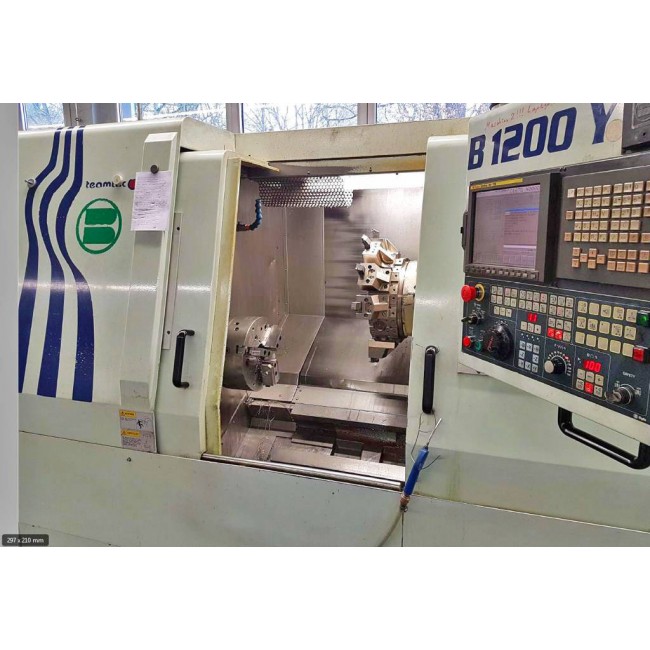

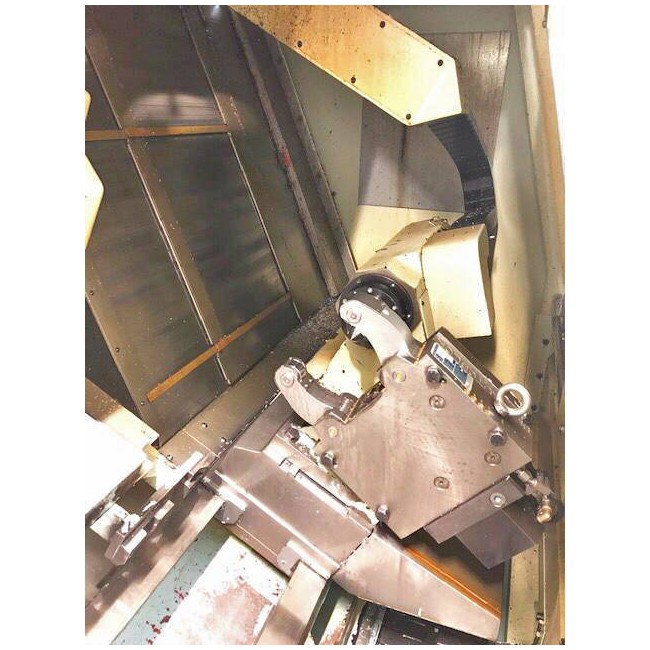

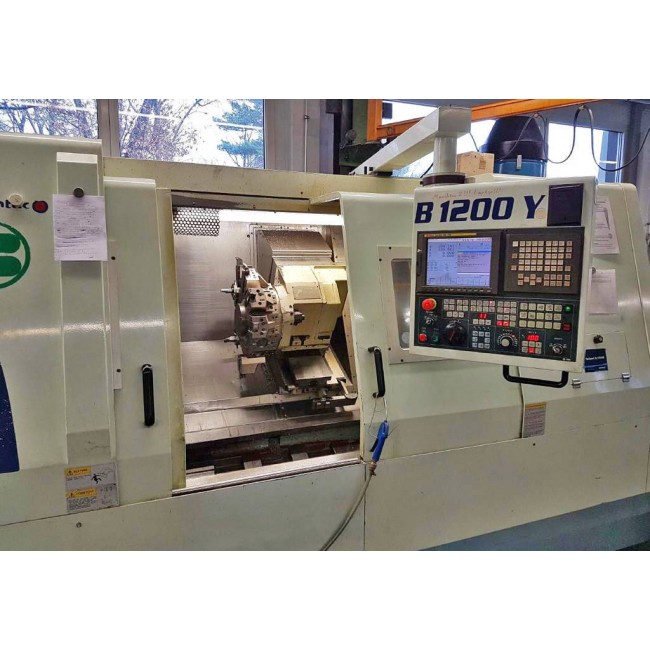

HORIZONTAL LATHE BIGLIA B1200Y
MAXIMUM TORNIBLE LENGTH: 1520 MM
MAXIMUM DIAMETER ON THE CART: 600 MM
TORNIBLE MAXIMUM DIAMETER: 540 MM
TRAVEL X1 AXIS: 555 MM
X2 AXIS RACING: 185 MM
RUNNING AXIS Z: 1595 MM
RUNNING AXIS Z2: 1640 MM
RUNNING AXIS Y: 160 (+ - 80) MM
RUNNING AXIS A: 1565 MM
TRAVEL AXIS C1-C2: 360º (0.001)
TRAVEL AXIS B: 15-240º (+ - 120)
SPINDLE SPEED: 2800 RPM
SPINDLE NOSE: ASA A2 # 8
CONTROL: FANUC 18I-TB
COMPLETE WITH MOUNT SMW-AUTOBLOK
