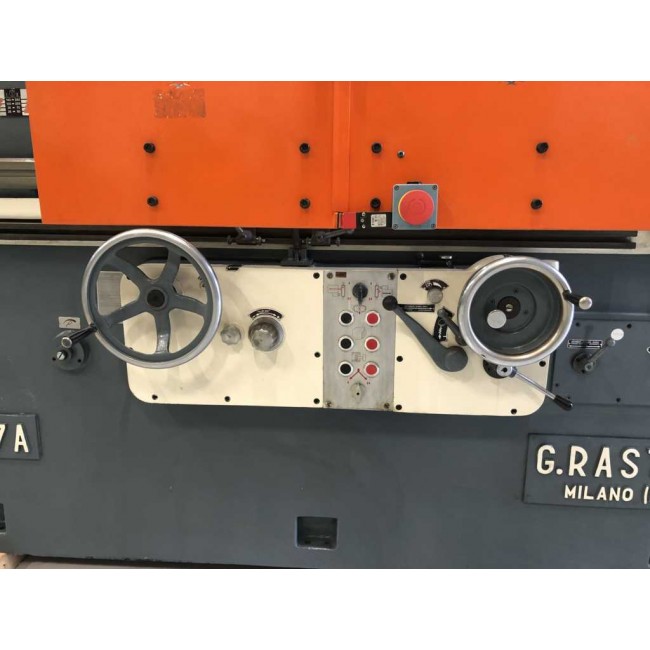

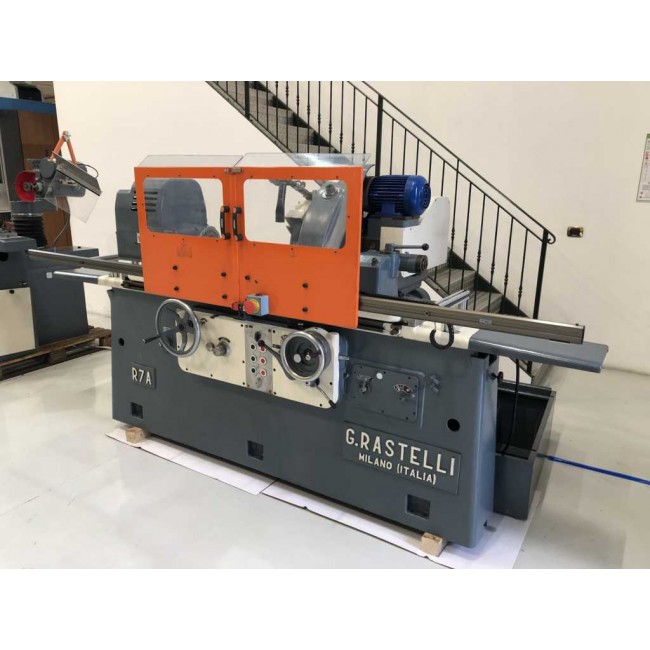

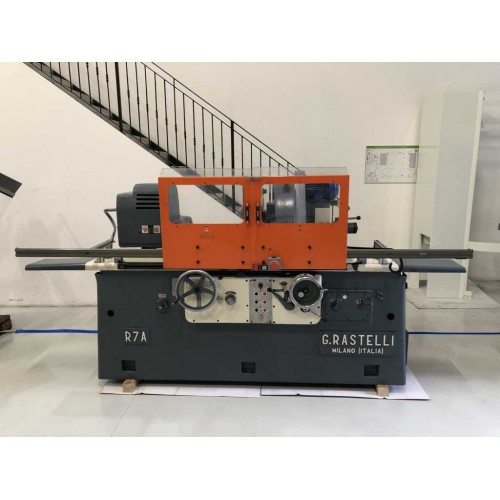

UNIVERSAL GRINDING G. RASTELLI R7A

UNIVERSAL GRINDING G. RASTELLI R7A

UNIVERSAL GRINDING G. RASTELLI R7A

CENTER HEIGHT 165 MM
DISTANCE BETWEEN TIPS 1000 MM

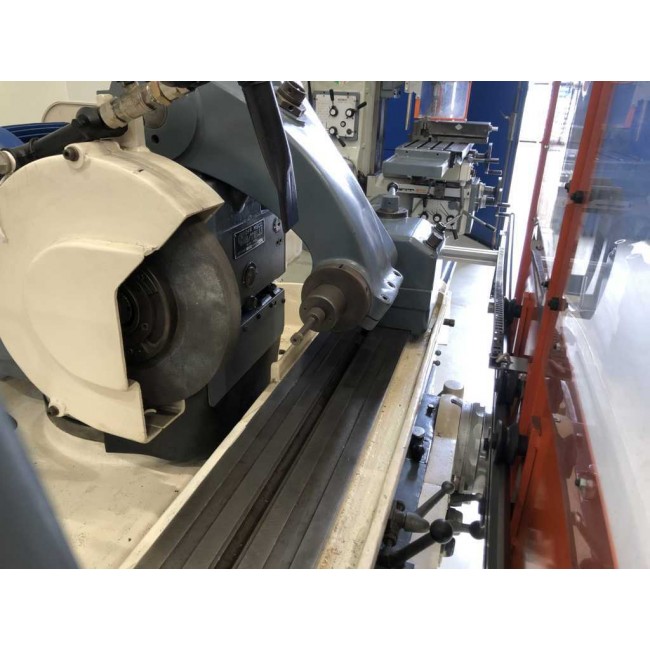

GRINDING WHEEL: DIAMETER 400 MM
STRIP 50 MM
FORO127 MM
RPM 1400 RPM.
MOVING WITH BATHING
AUTO INCREMENT
INCREASE PLONGÈ PLUMBING
P. the HEAD PIECE 4 SPEED
THE SPEED RANGE FROM 50 TO 490 G/MIN.
VARIABLE TILT ANGLE FROM 0 TO 90 DEGREES
SPINDLE TAPER MK 4
CONE TAILSTOCK MK 3
TABLE INCLINATION MAX 4/9 DEGREES
ROTATION SPEED OF TABLE FROM 0 TO 6 M/MIN.
ENGINE, HEAD, DOOR OF THE GRINDING WHEEL 4 KW
ENGINE, HEAD, DOOR, PCS 0,60 KW
WEIGHT 2000 KG

UNIVERSAL GRINDING G. RASTELLI R7A
